CReME™Configure Barcode Scanners

When using a Barcode scanner, to input information into CReME™, the scanner requires configuration so the data entry is smooth and reliable. This document describes the configuration of the following types of barcode scanners:

1. Zebra DS2208 used to scan the barcode sheets of units (vehicles) for input to delivery notes (section A)
2. Newland HR32 used in digiTally (section B)

The following steps have been tested to work on Zebra scanner model DS2208.

1. Reset the barcode scanner to factory default settings
2. Add an "Escape" key press before the barcode
3. Add an "Enter" key press after the barcode
4. Add a delay between each character

1) Scan the barcode below to reset the barcode scanner to factory default settings.

This software will add an "Escape" keypress as a prefix (before the barcode) and an "Enter" keypress as a suffix (after the barcode).

1. Download and install the Zebra 123Scan software.
2. Download the configuration file from here.
3. Ensure the barcode scanner is connected to the computer.

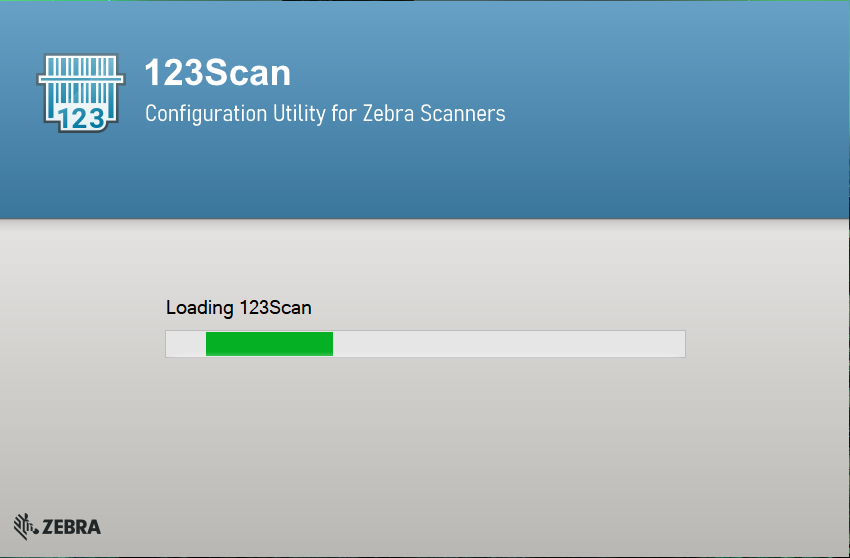

4. Launch the 123Scan software.
5.

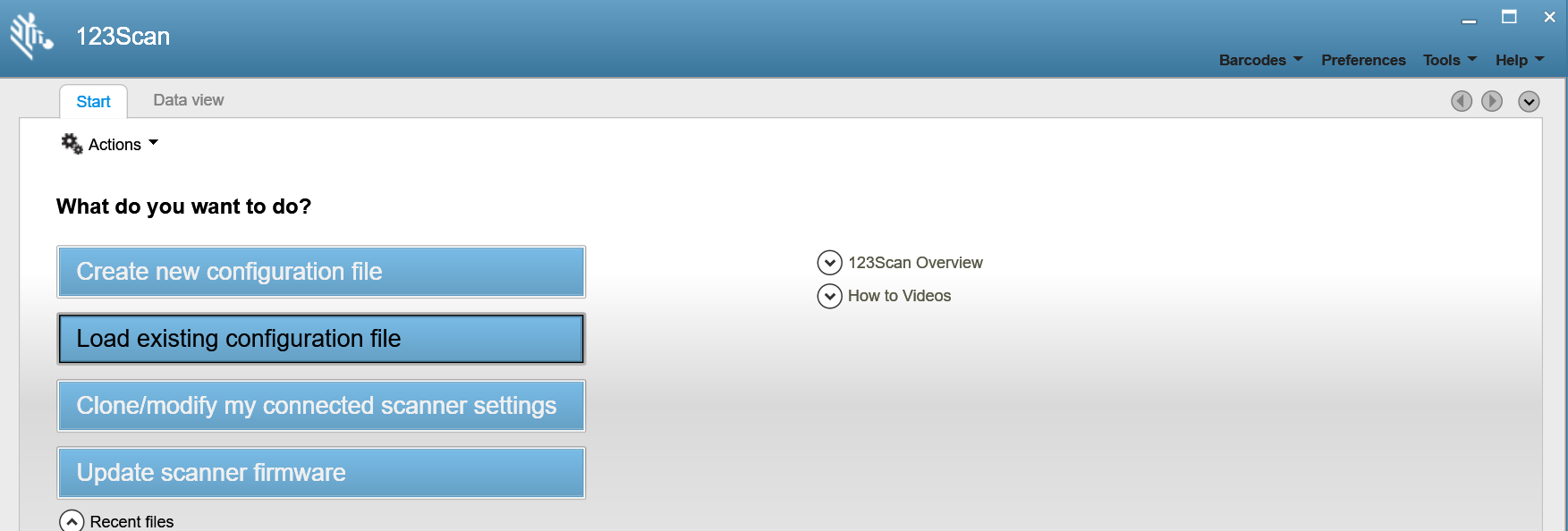

6. Click on "Load Existing Configuration File".
7.

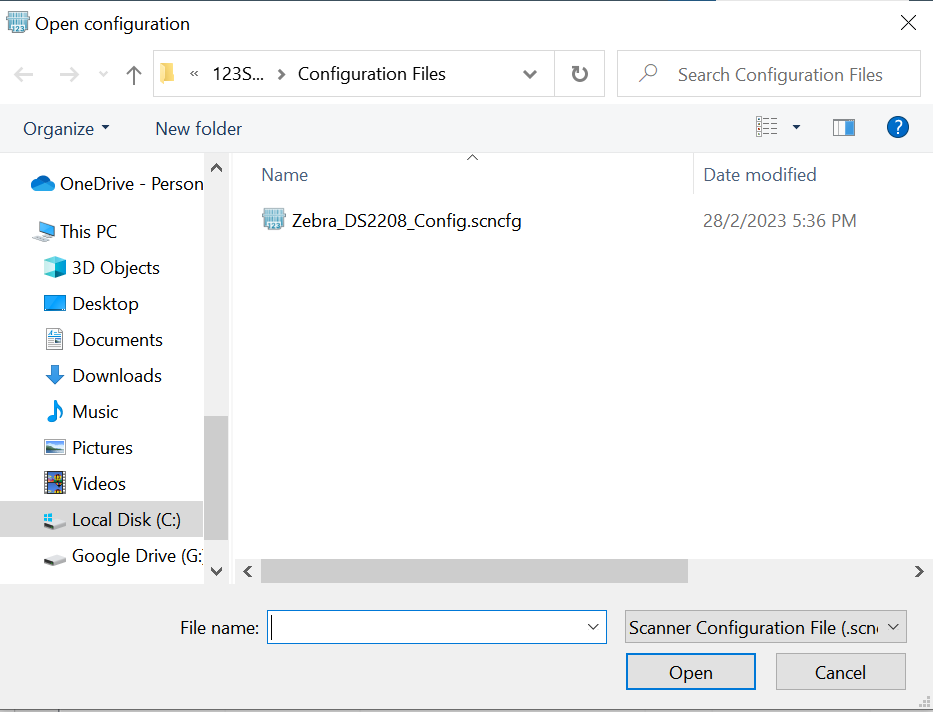

8. Select the configuration file that you downloaded.
9.

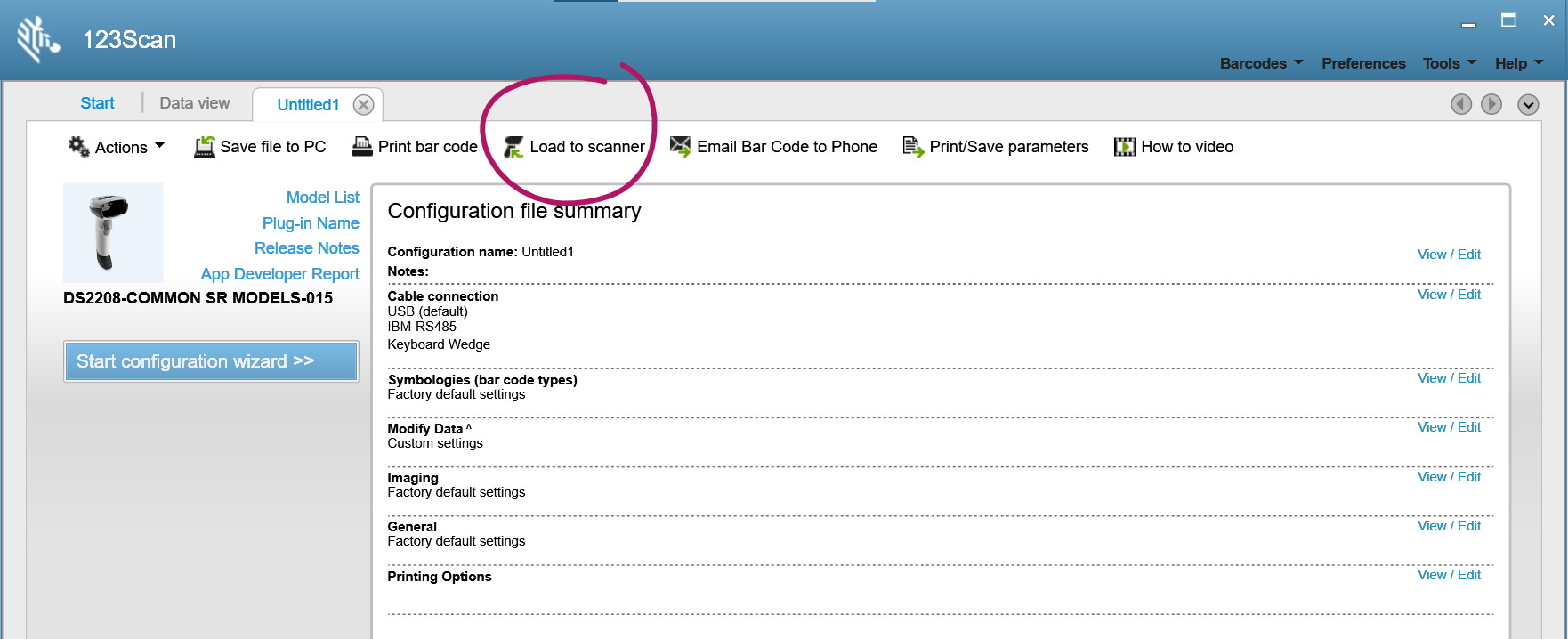

10. Click "Load to Scanner".
11.
12. The scanner lights will blink for a while.
13. After the scanner lights return to normal, proceed to section C.

When scanning the barcode, some characters may be missing because the data input is too fast. This can be overcome by slowing down the tranmission of data from the scanner to the computer.

Scan the barcode below to add a delay.

YourZebra Model DS2208 barcode scanner is now ready for use on CReME™ Office.

You may download a copy of the manual here..

Briefly you need to carry out the following steps:

1. Add "Escape" as a prefix
2. Add an "Enter" as a suffix
3. Slow down the output of the scanner

1. Scan the Enter Setup barcode (page 252).
2. Scan the Set Custom Prefix barcode (page 251).
3. Scan the numeric code "1" from the "Digit Barcodes" section of the Appendix (page 260).
4. Scan the numeric code "B" from the "Digit Barcodes" section of the Appendix (page 262).
5. Scan the Save barcode from the “Save/Cancel Barcodes” section of the Appendix (page 263)
6. Scan the Enable Custom Prefix barcode (page 251).
7. Scan the Exit Setup barcode (page 251).

1. Scan the Enter Setup barcode (page 252).
2. Scan the Set Terminating Character to CR (0x0D) barcode (page 255).
3. Scan the Save barcode from the “Save/Cancel Barcodes” section of the Appendix (page 263)
4. Scan the Enable Enable Terminating Character Suffix barcode (page 255).
5. Scan the Exit Setup barcode (page 251).

1. Scan the Enter Setup barcode (page 252).
2. Scan the Long Transmit Delay (150ms) barcode (page 81).
3. Scan the Save barcode from the “Save/Cancel Barcodes” section of the Appendix (page 263)
4. Scan the Exit Setup barcode (page 251).
